MARLIN 850 HD Pro
Built to work hard. Made to last.

Marlin 850 HD Pro is the perfect RIB for professional use: sturdy, spacious, and fully customizable. It can carry up to 18 people and be configured for any purpose—from fishing and military services to tourist tours. It combines unmistakable functionality and quality to face every challenge at sea with absolute reliability.

LAYOUT AND DESIGN

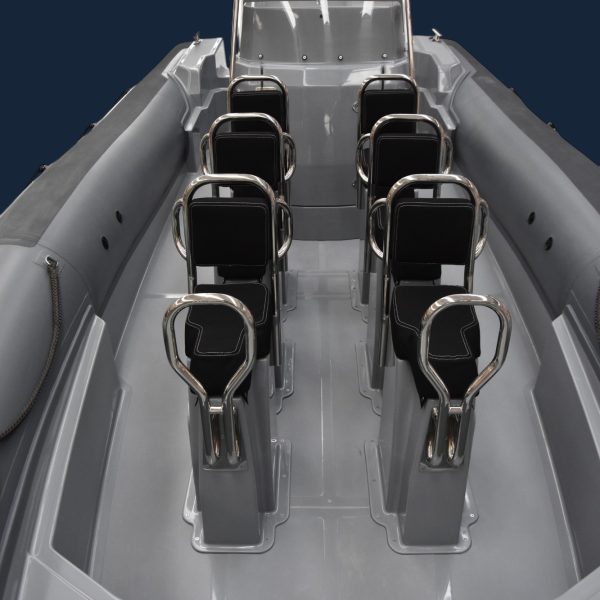

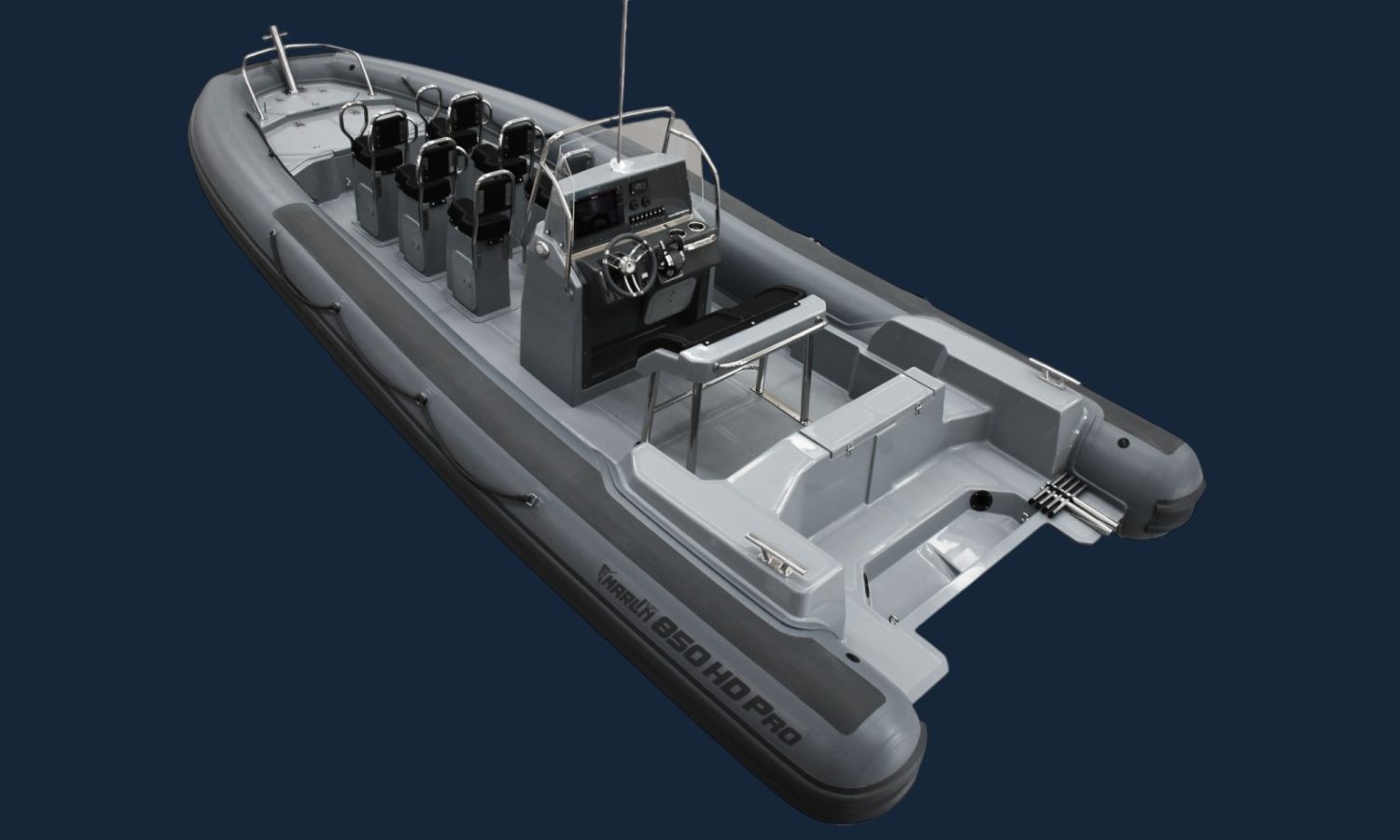

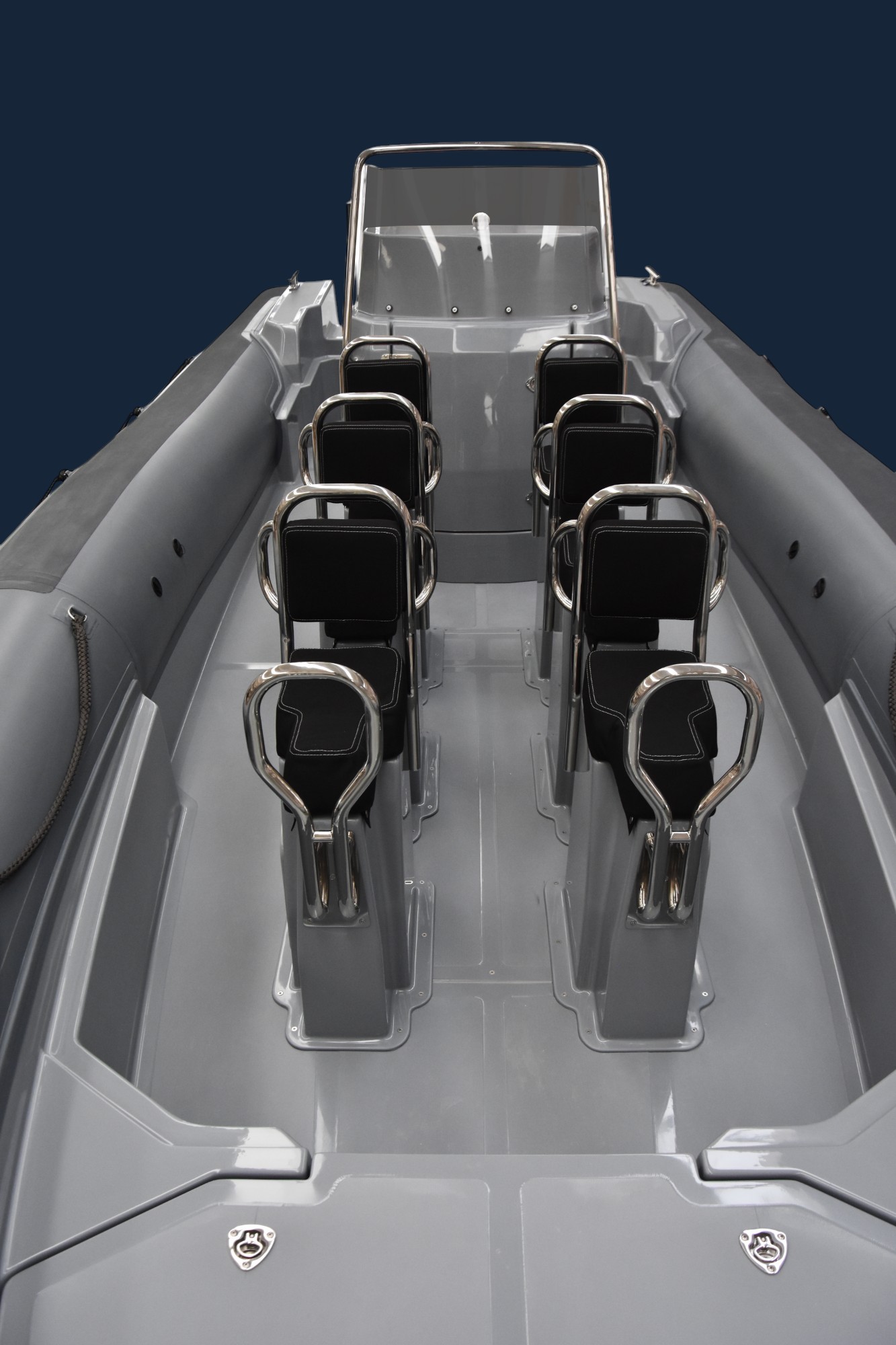

Maximum freedom of configuration without sacrificing style. The deck layout of the Marlin 850 HD Pro is fully modular: you can choose the console position, add seating, or leave the space completely open. Whatever your choice, Marlin’s design remains the star, featuring clean lines, functional solutions, and an unmistakable aesthetic signature.

SAFETY AND ERGONOMICS

Stability and protection are at the heart of the design. The tubes, constantly in contact with the water at the stern, provide stabilizing support that ensures balance even during the most demanding maneuvers. The interior of the RIB is fully protected by the tubes, including at the bow, creating a safe and well-defined environment in every operating condition.

PERFORMANCE

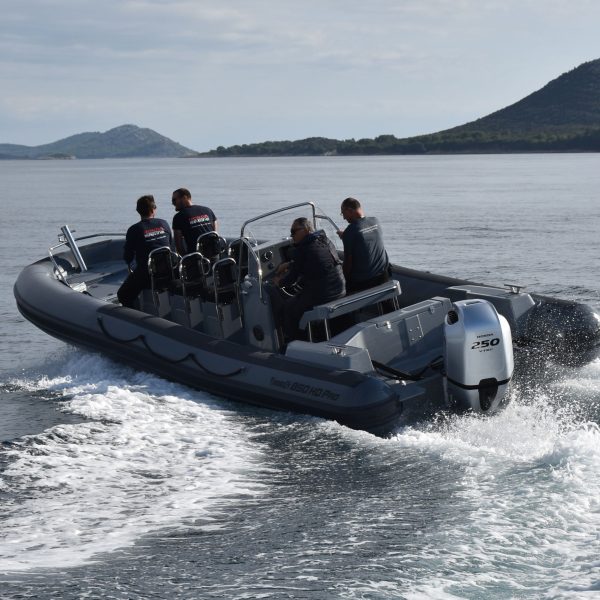

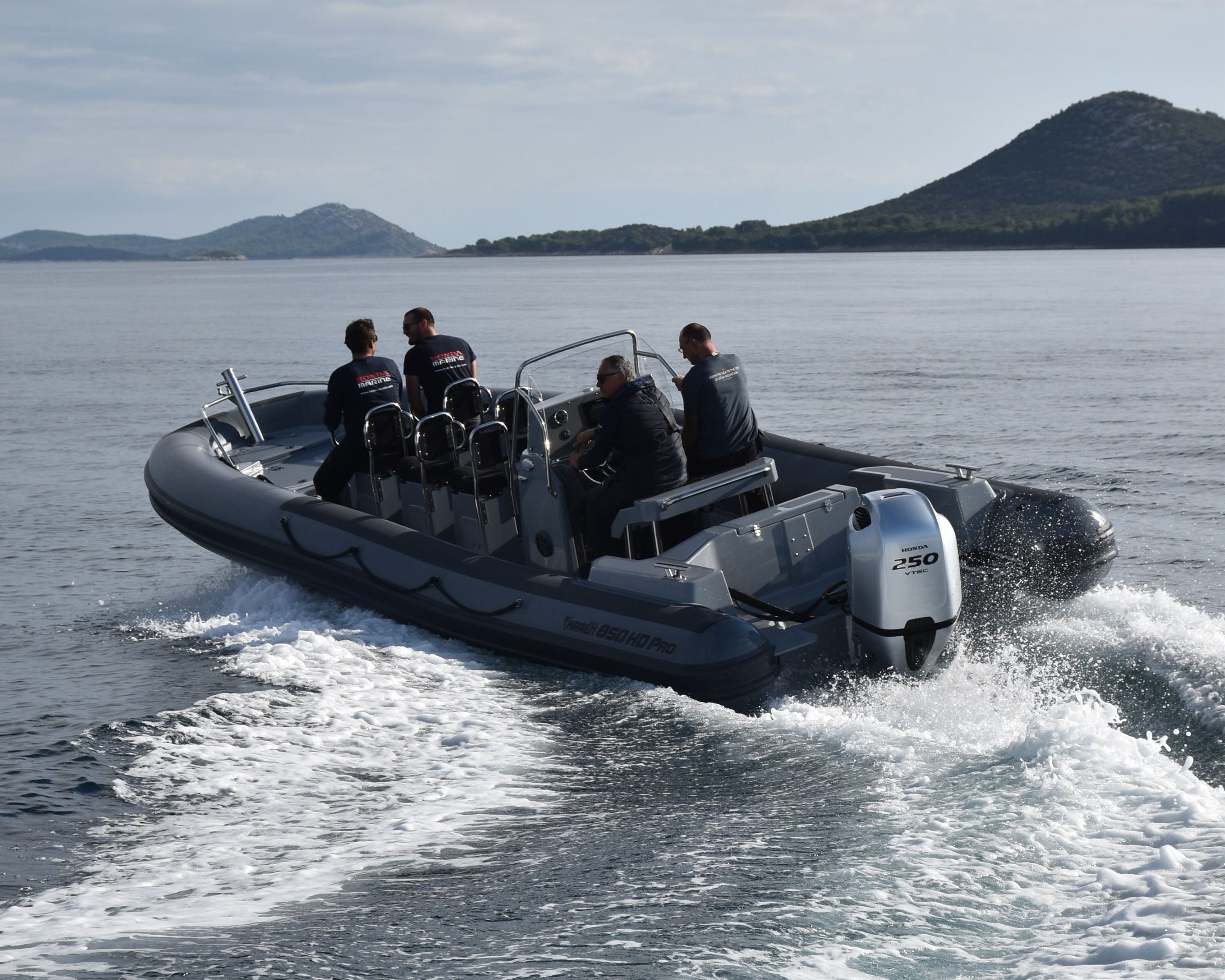

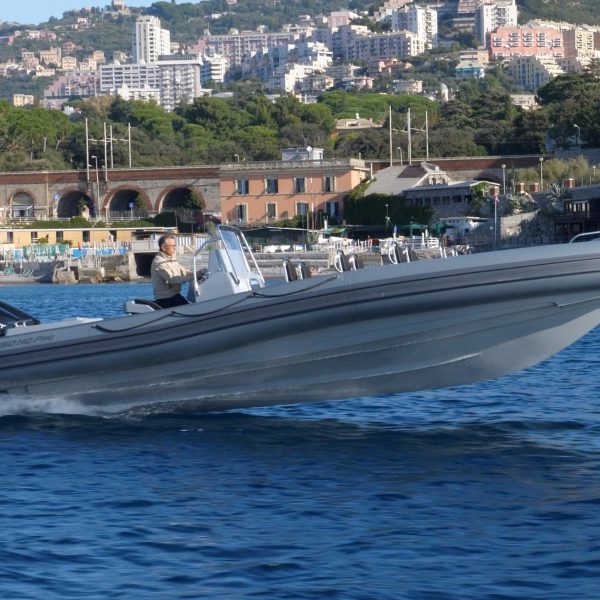

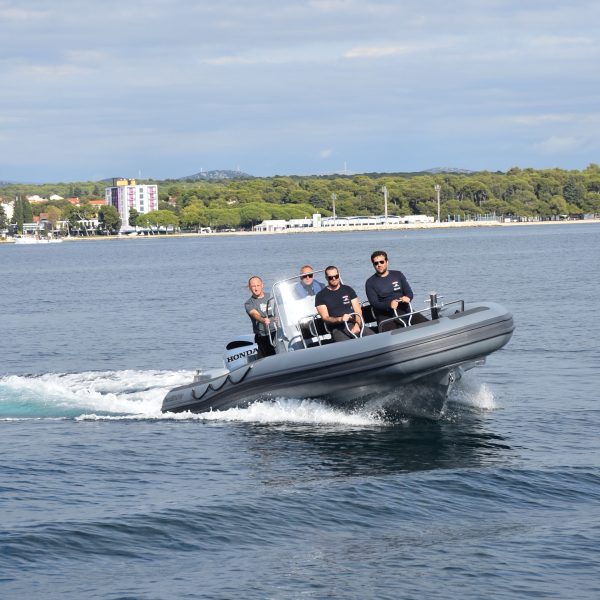

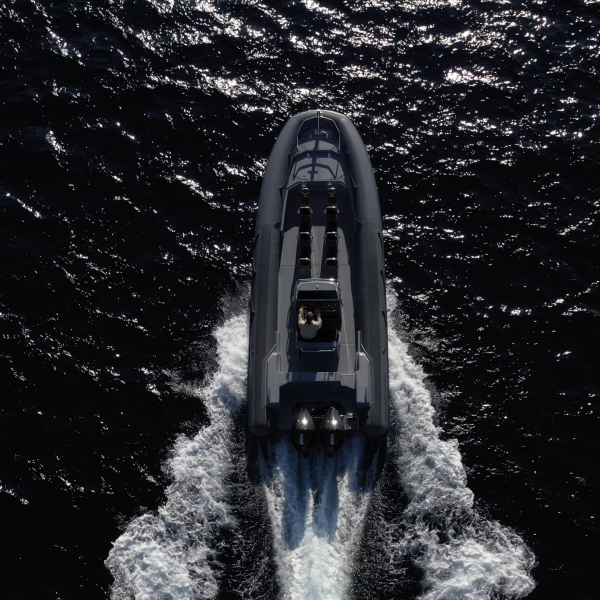

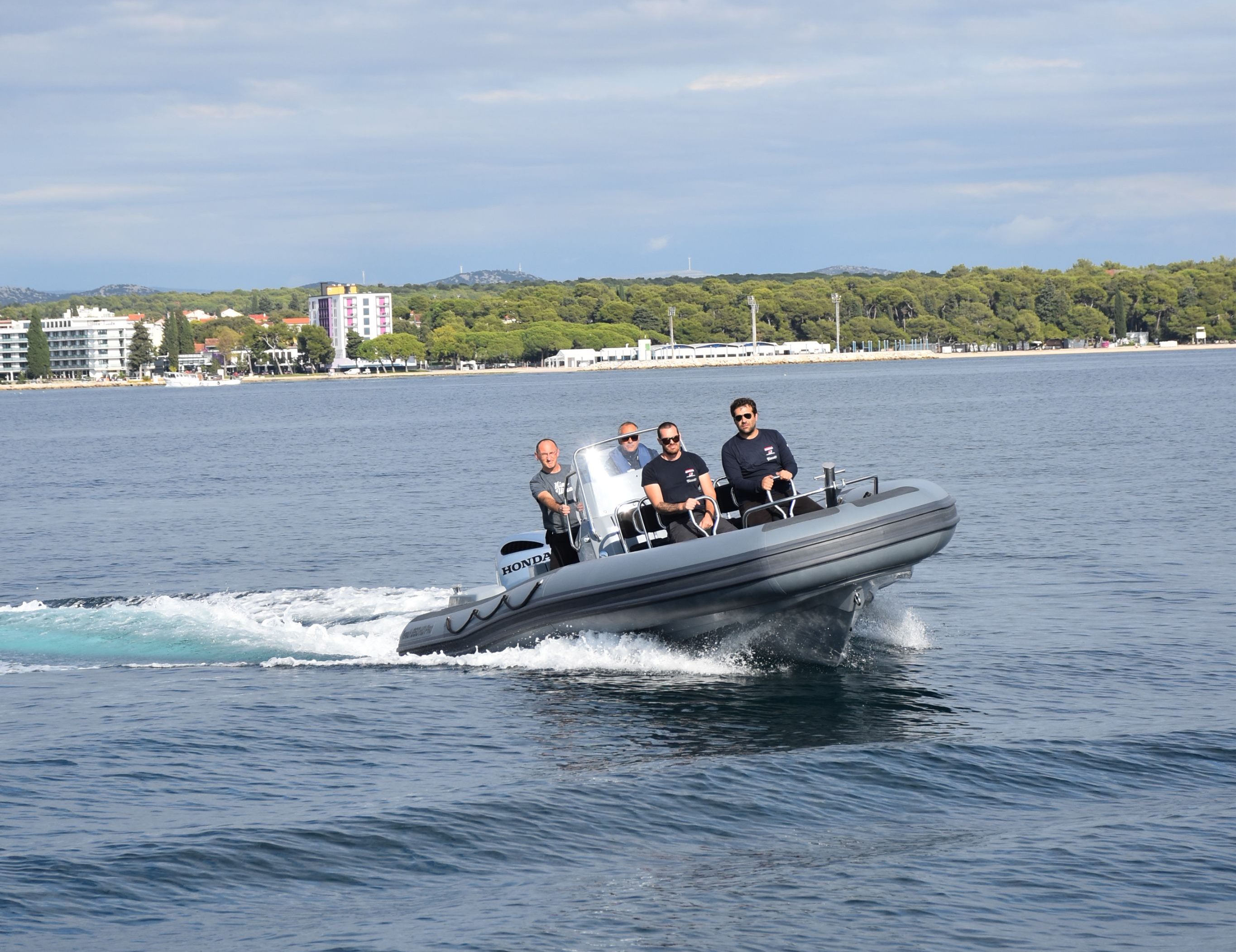

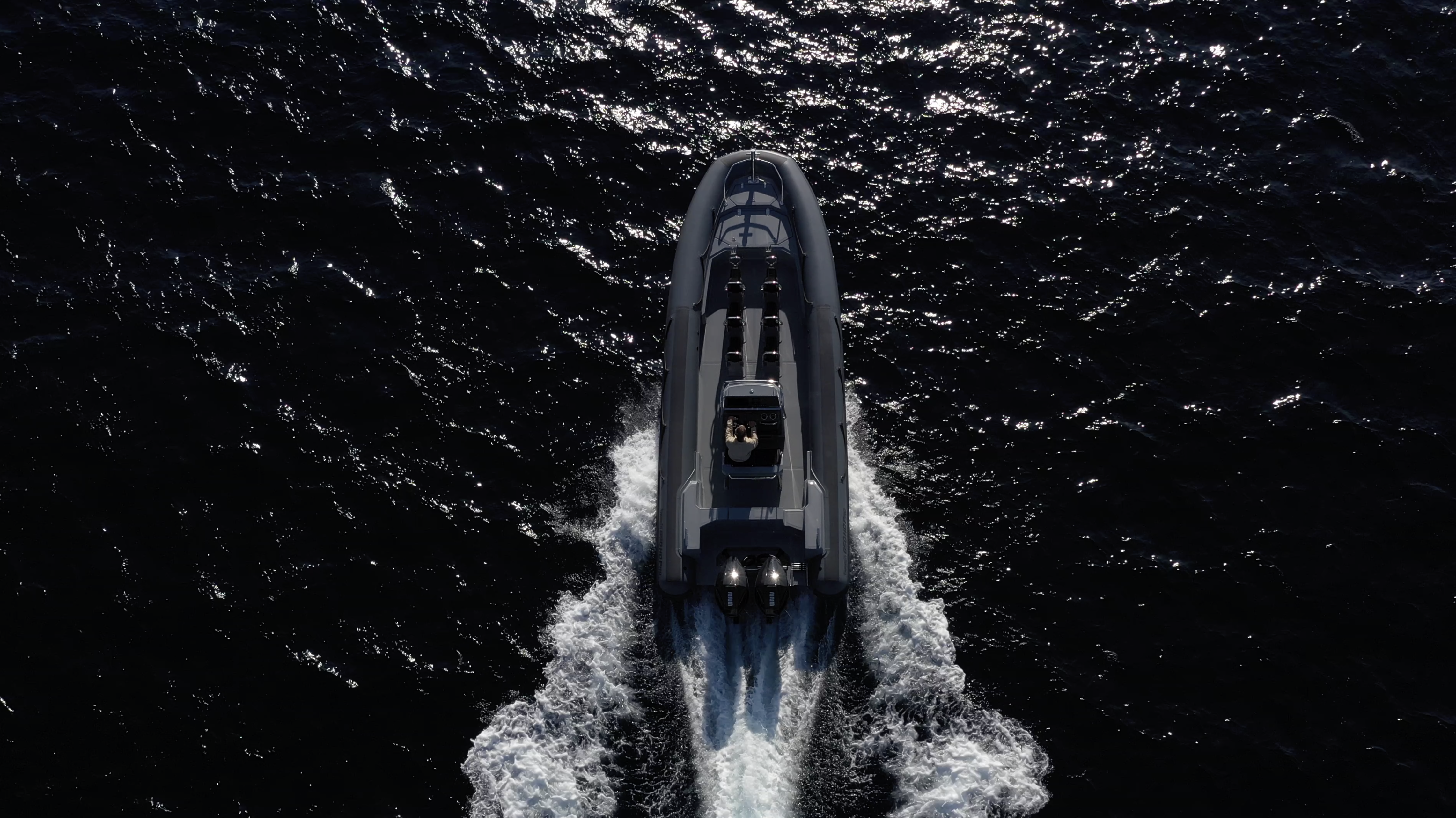

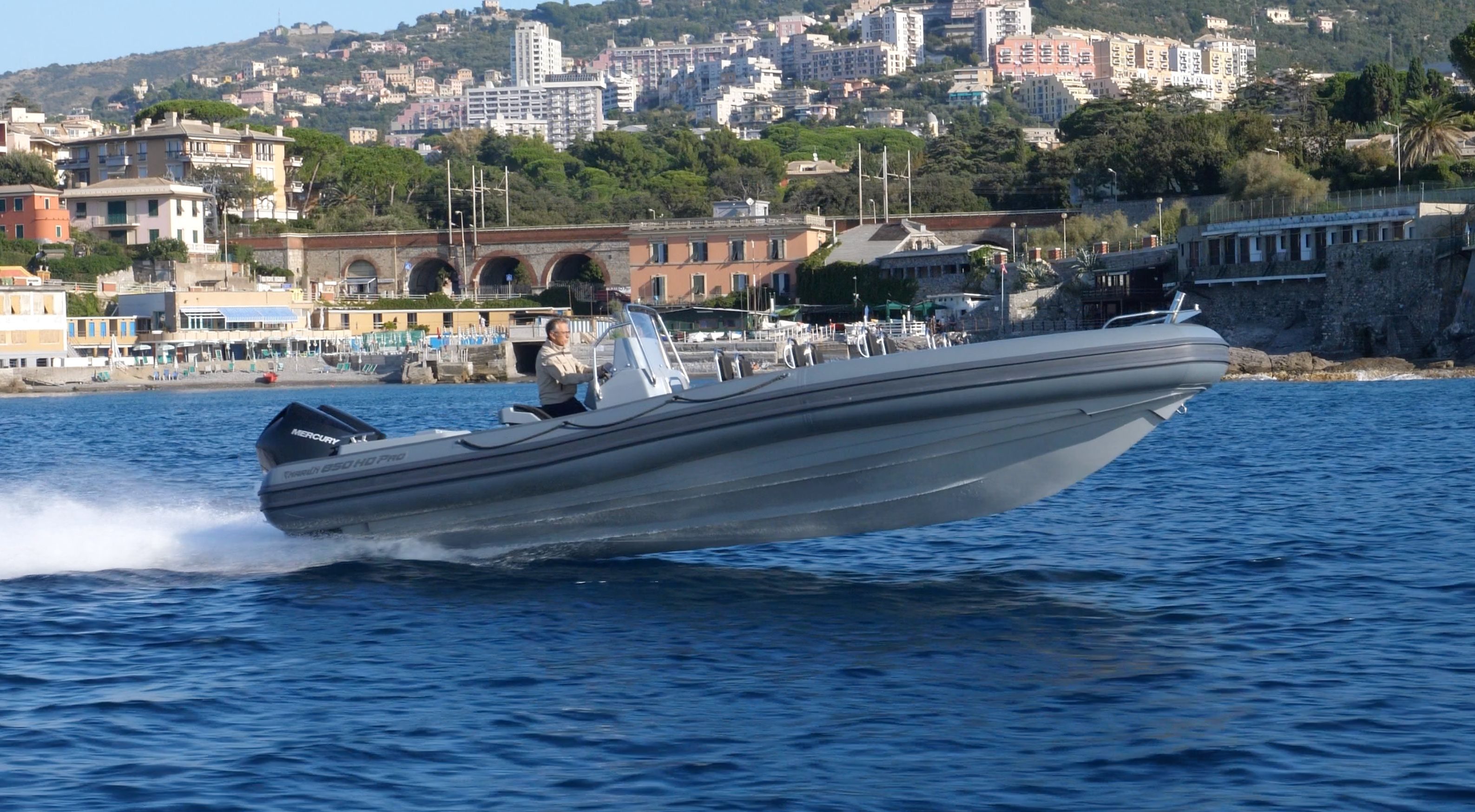

Powerful, stable, and responsive: the Marlin 850 HD Pro is designed to deliver reliable performance in all sea conditions. The hull provides excellent grip, while the tube configuration ensures stability even at high speeds. The steering response is precise and intuitive, allowing for full control even during the most demanding missions.

TECHNICAL FEATURES
Design category
B
Overall lenght
cm 850
Certified lenght
cm 850
Internal lenght
cm 775
Overall width
cm 318
Internal width
cm 194
Tubes diameter
cm 62
Weight without engines
Kg 1450
Capacity of people
nr. 18
Maximum power
CV 1X450 & 2X250
Compartments
nr. 7
Fuel tank
lt. 420
Water tank
lt. 80
Tubes material
Neoprene-Hypalon 1600 gr/m²
G.R.P.
Triple Hull Moulding Plans and patents Marlin Boat
Projects and patents
Maril Boat
Stern height
1XXL & 2XL
STANDARD FEATURES

2 stainless steel 300 mm stern cleats

3 external stainless steel eyebolts

4 lifting eyebolts

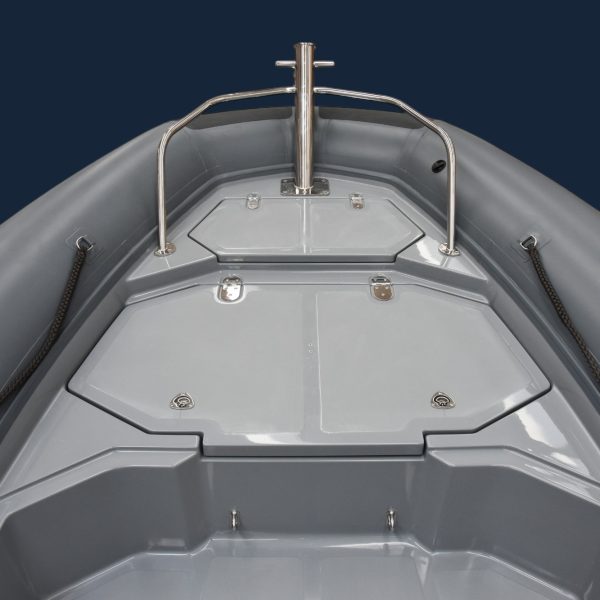

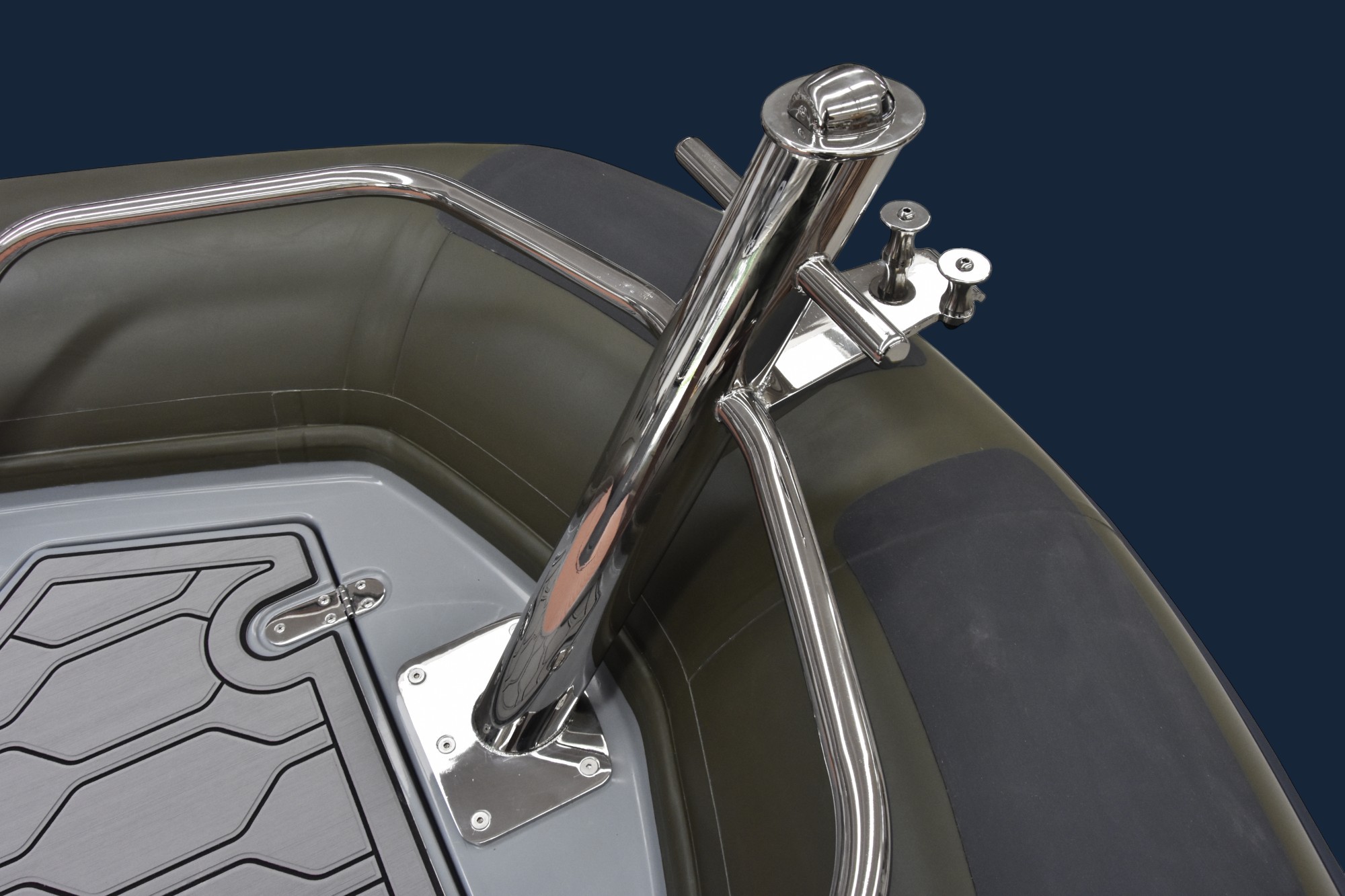

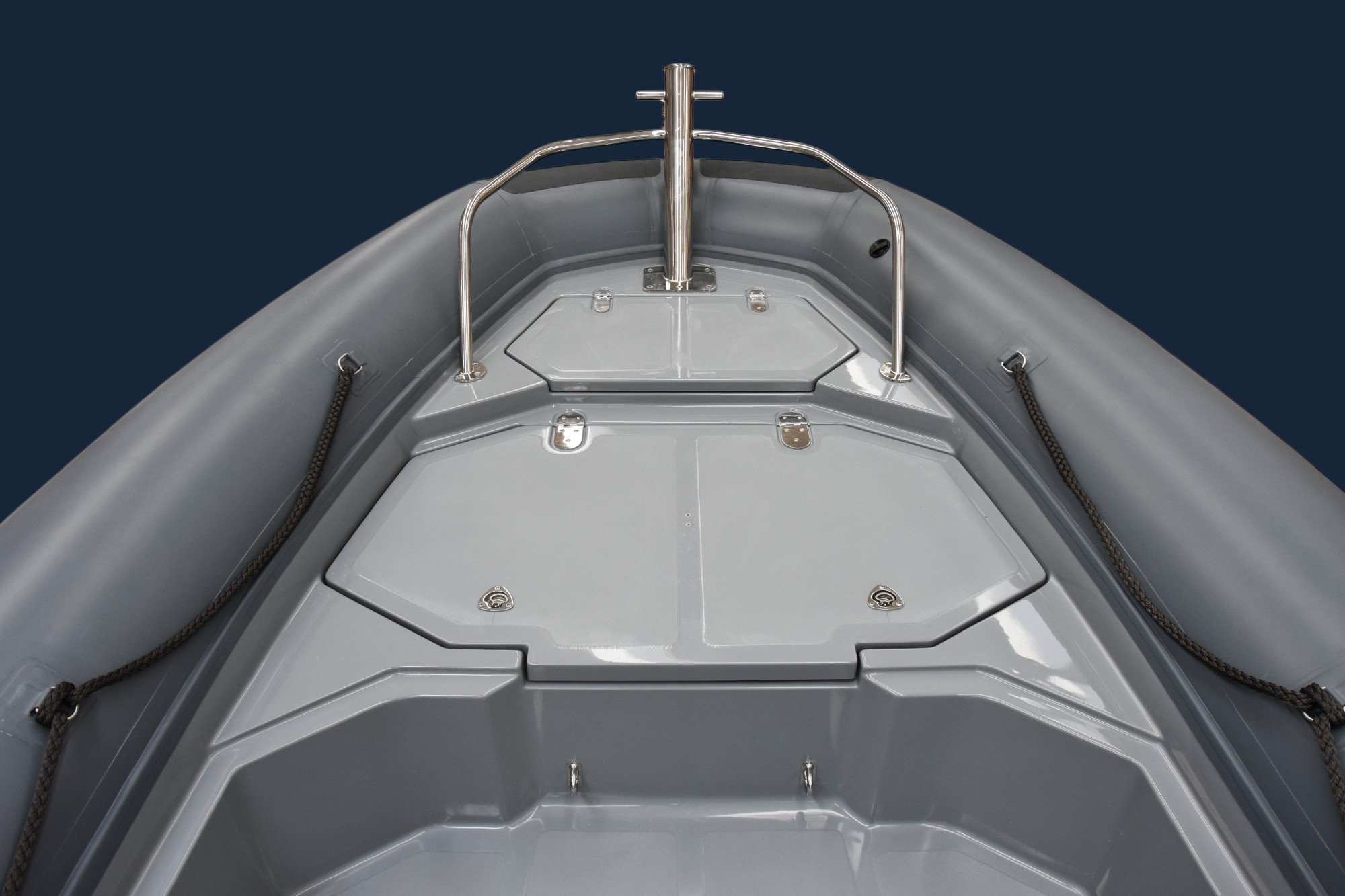

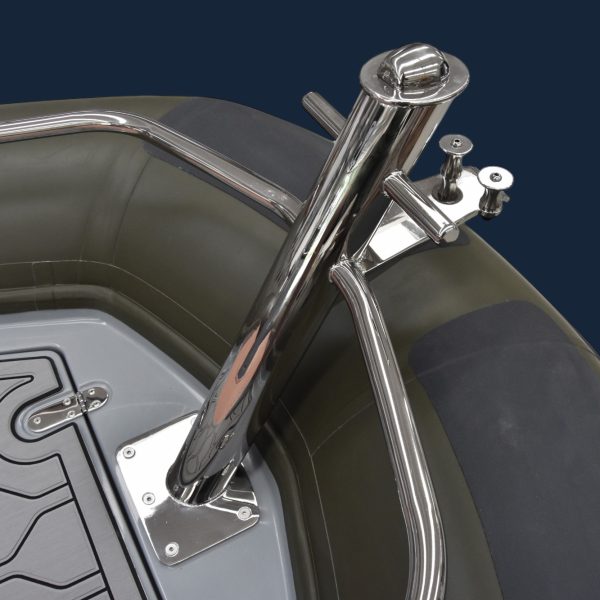

Inox bow bollard with pulpit and pass-bys

Reinforced hull

20 mm perimeter handrail rope

Two-seat guide console with windscreen, stainless steel handrail, drawer and front door

Front locker for anchor and chain

Floor-mounted locker

Front locker for stowage

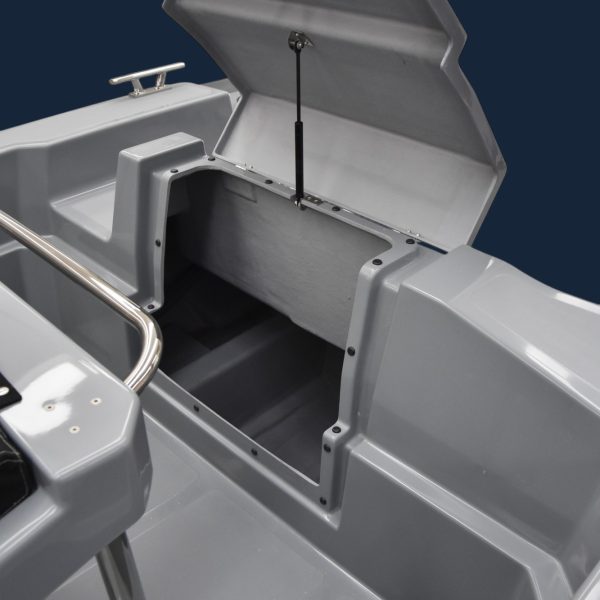

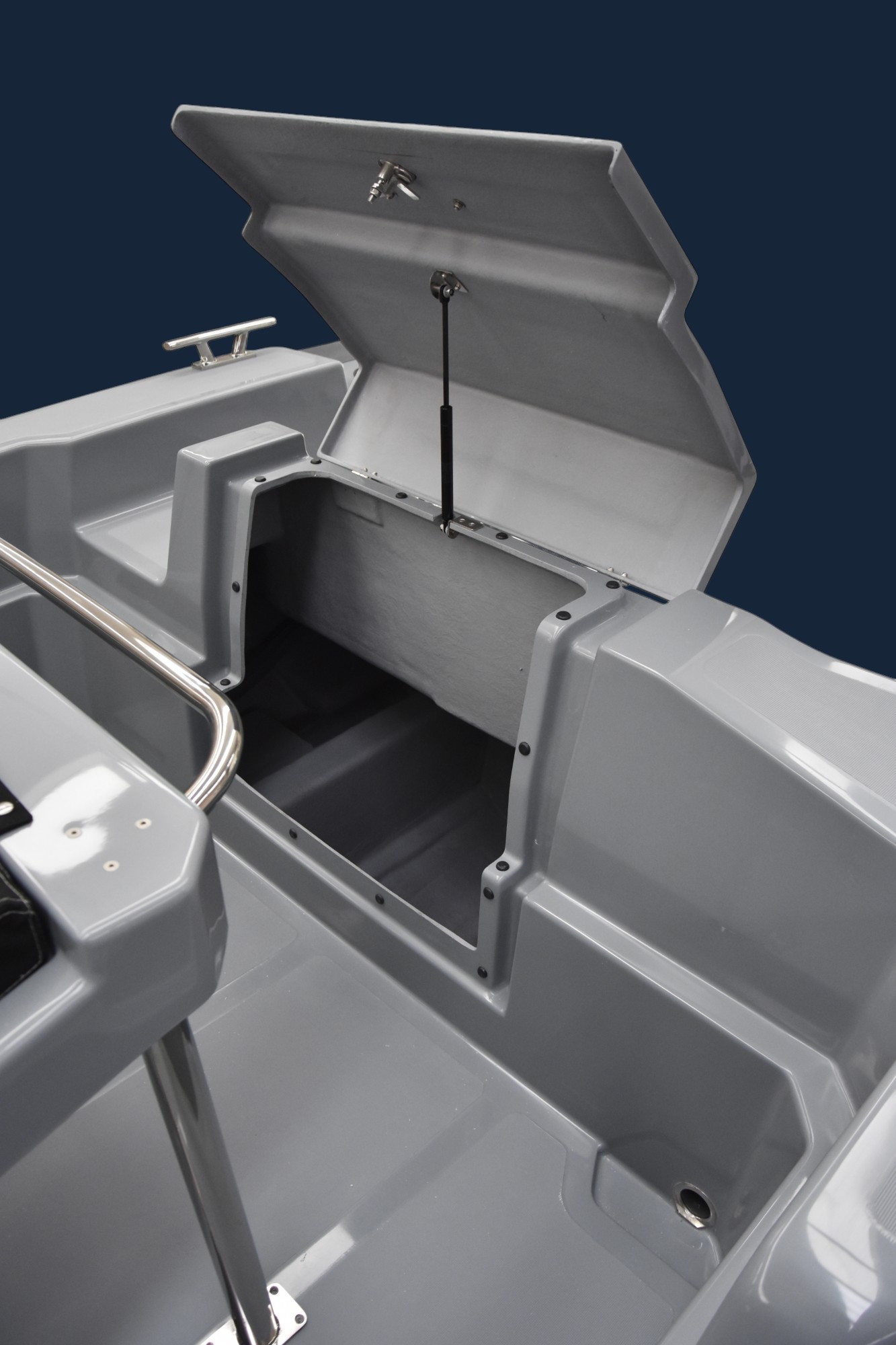

Rear locker

Electric inflator pump and pressure gauge

Electrical system with 8 users panel

Repair kit

Lights off

Automatic bilge pump

4 steps stainless steel ladder

Two-seat guide seat with anatomical fiberglass and stainless steel cushion

420 liter stainless steel tank

Trumpet

1600 D Tex heavy fabric tubular with non-slip reinforcements

Cushions color variant

GRP: White

Tubes: artic grey

Cushions: grey

EXTRA FEATURES
  • Water skiing towing pole
  • Bathroom console with chemical toilet and porthole
  • Bow walking surface
  • Bow thruster
  • Stern underwater blue led lights

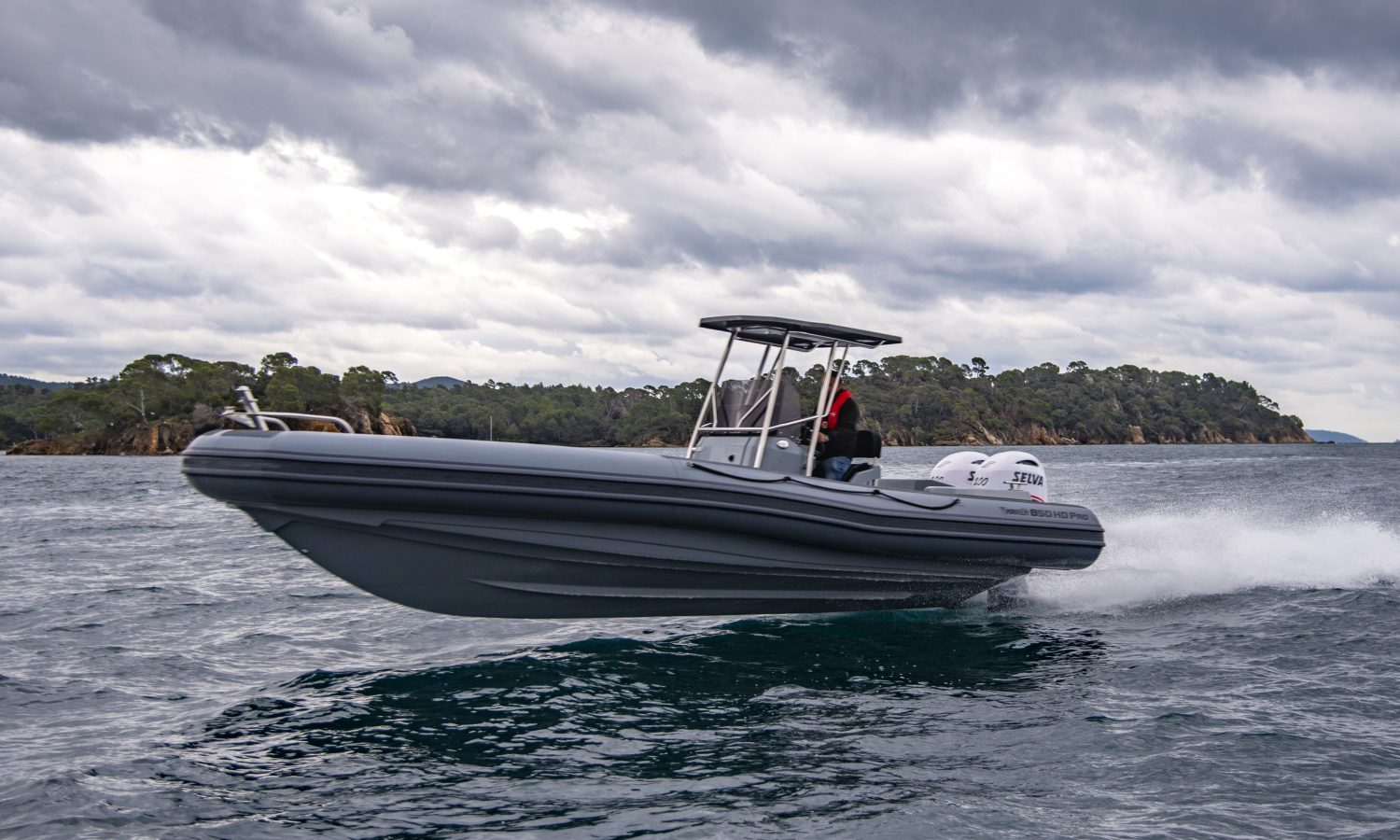

  • Stainless steel and fybreglass hard top with led navigation lights
  • Cockpit and platform complete lighting blue led lights
  • Kit u-shaped stern sofa with cushions
  • Kit bow sunbathing with cushions
  • Floor re-flex foam kit
  • Floor synthetic teak 6 mm kit
  • Lifting strops kit with shackles
  • Stern bathing platforms with stainless steel ladder
  • Thank-holder rack
  • Stainless steel rollbar with lights
  • Stainless steel rollbar with lights and extensible bimini
  • Stainless steel ladder with handrail
  • Bow console seat
  • Water tank 80 lt with shower and pump
  • Table with removable pedestal and pillow
  • Stern bimini for hard top with carbon elastic poles
  • Stainless steel 4 arch bimini
  • Steering and seats covers
  • Total mooring cover
  • Hydraulic steering tilt single cylinder 350/700 hp
  • Tubes color variant
  • Cushions color variant
  • Grey fiberglass ral 7046 color variant
  • Anchor windlass with chain and stainless steel anchor 7,5kg
  • Jokey seat
  • Jokey seat con maniglione anteriore
  • Electronic equipment
