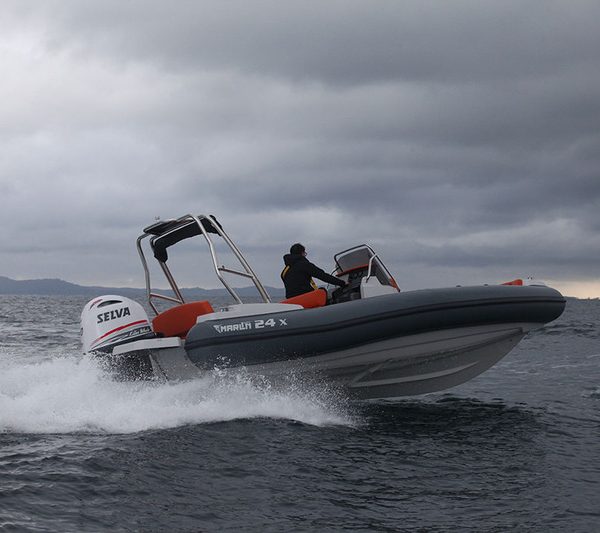

MARLIN 24 X
Compact only in size. Big in every other way.

Marlin 24 X combines simplicity, versatility, and attention to detail in a RIB that stands out. Clean lines and balanced proportions enclose practical, well-organized spaces designed to deliver the most—even in just 24 feet. From the large sunbed to customization options, it’s the ideal choice for those seeking freedom, comfort, and pure boating pleasure without compromise.

LAYOUT AND DESIGN

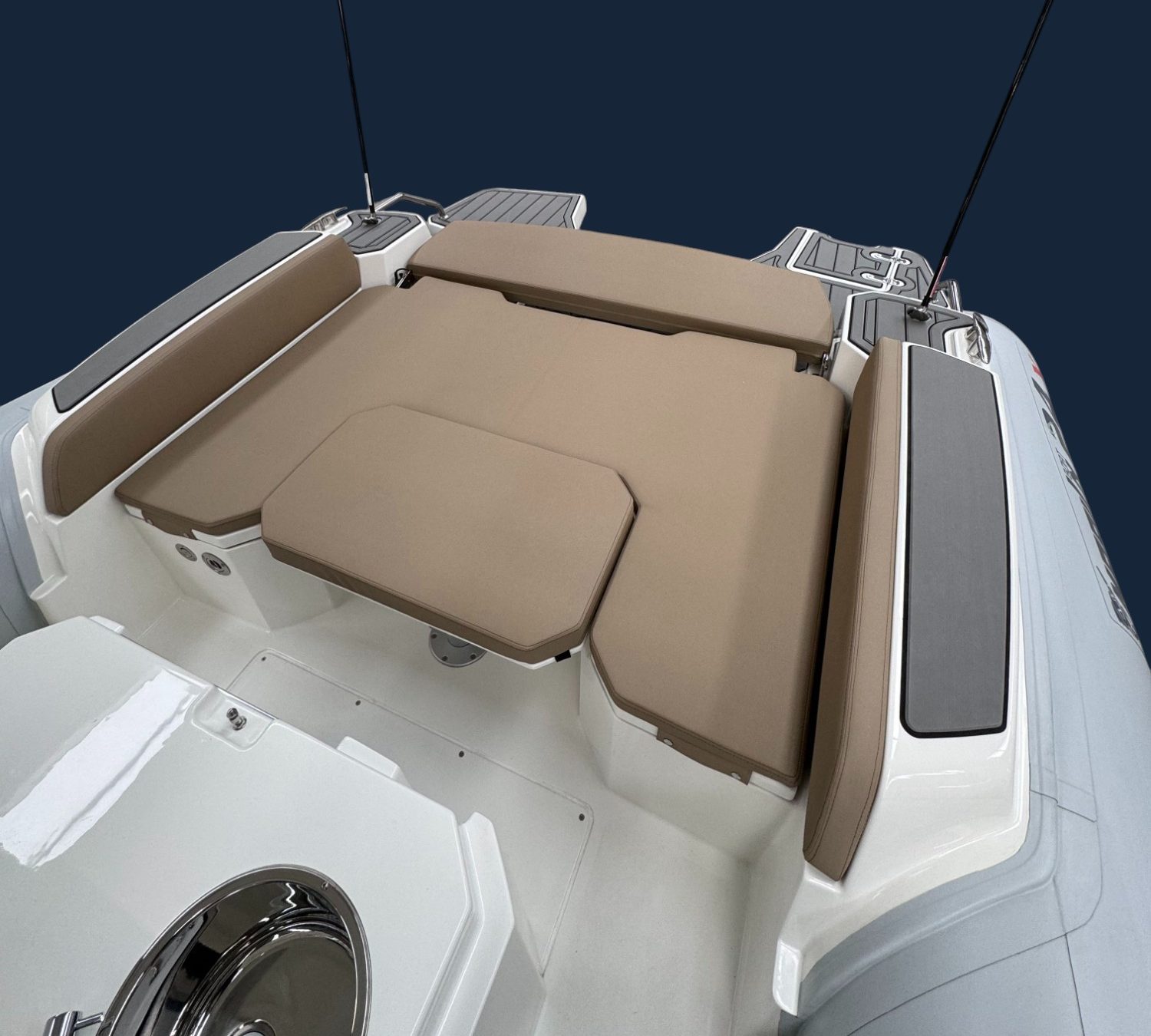

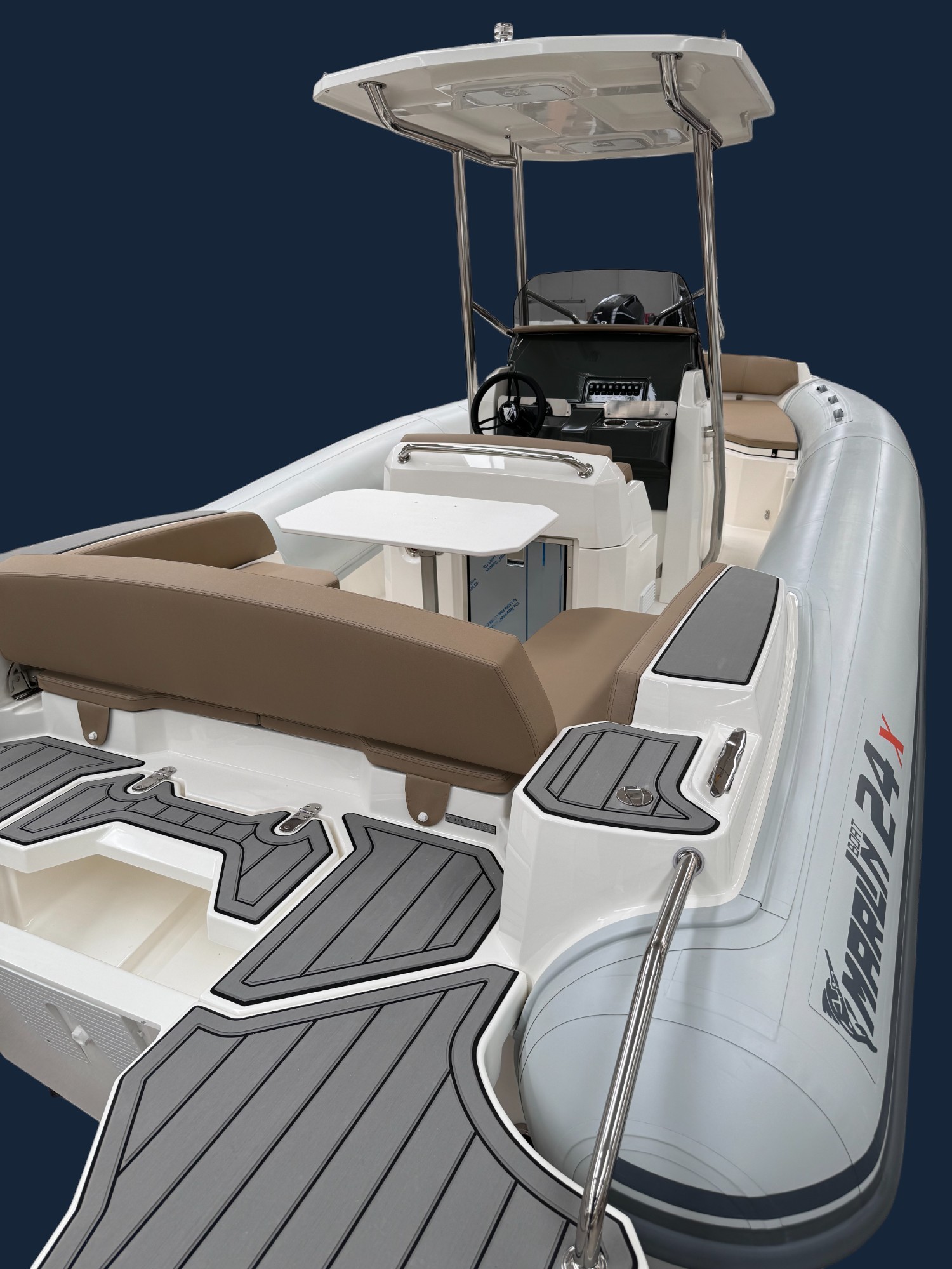

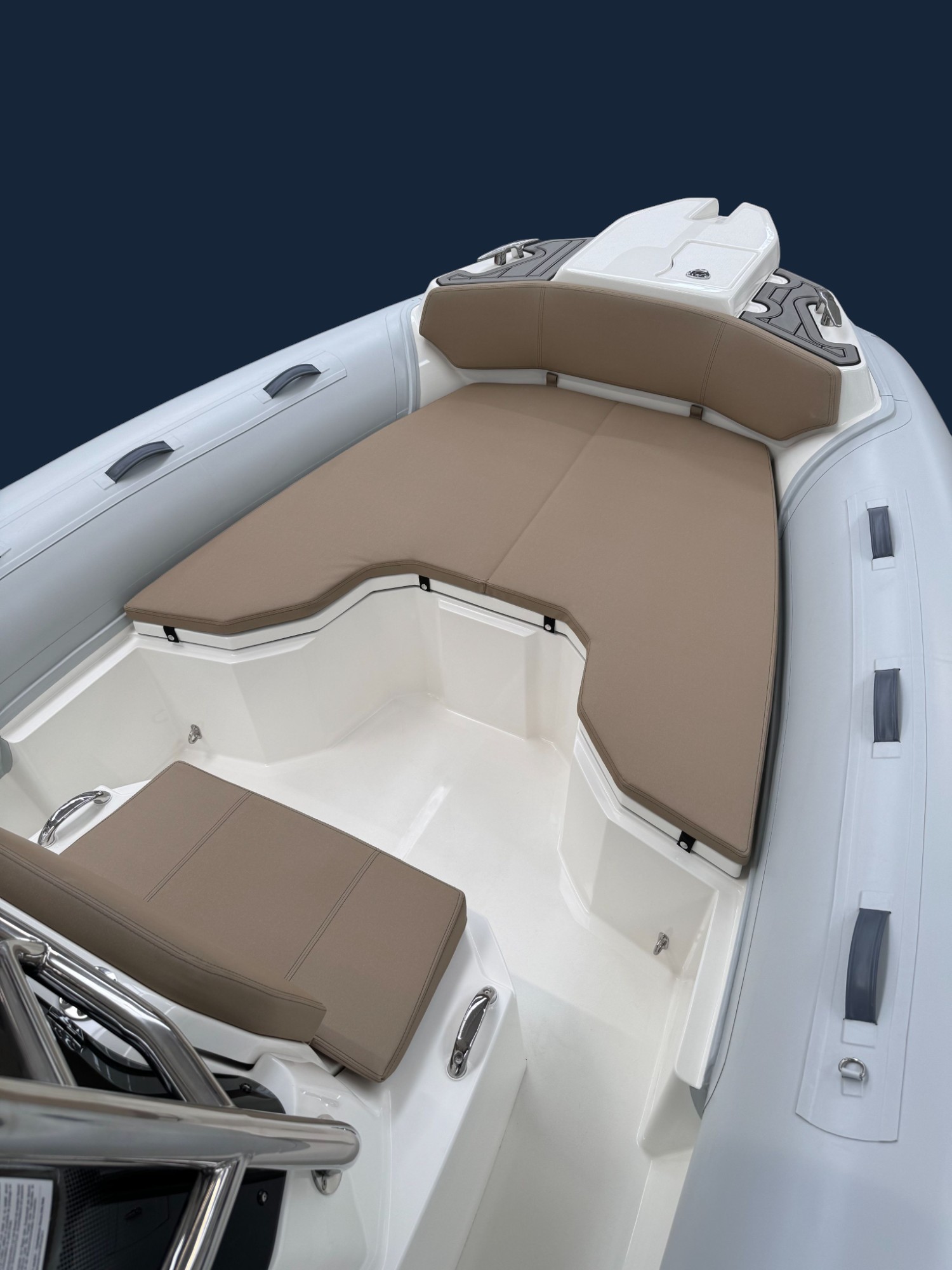

Marlin 24 X combines elegance and functionality in every detail. With two large sunbeds—one at the bow and one at the stern—and refined finishes, every corner is designed to offer a sophisticated onboard experience. Modern lines and clean design blend with well-distributed spaces, creating a comfortable and stylish environment at every moment of your journey.

SAFETY AND ERGONOMICS

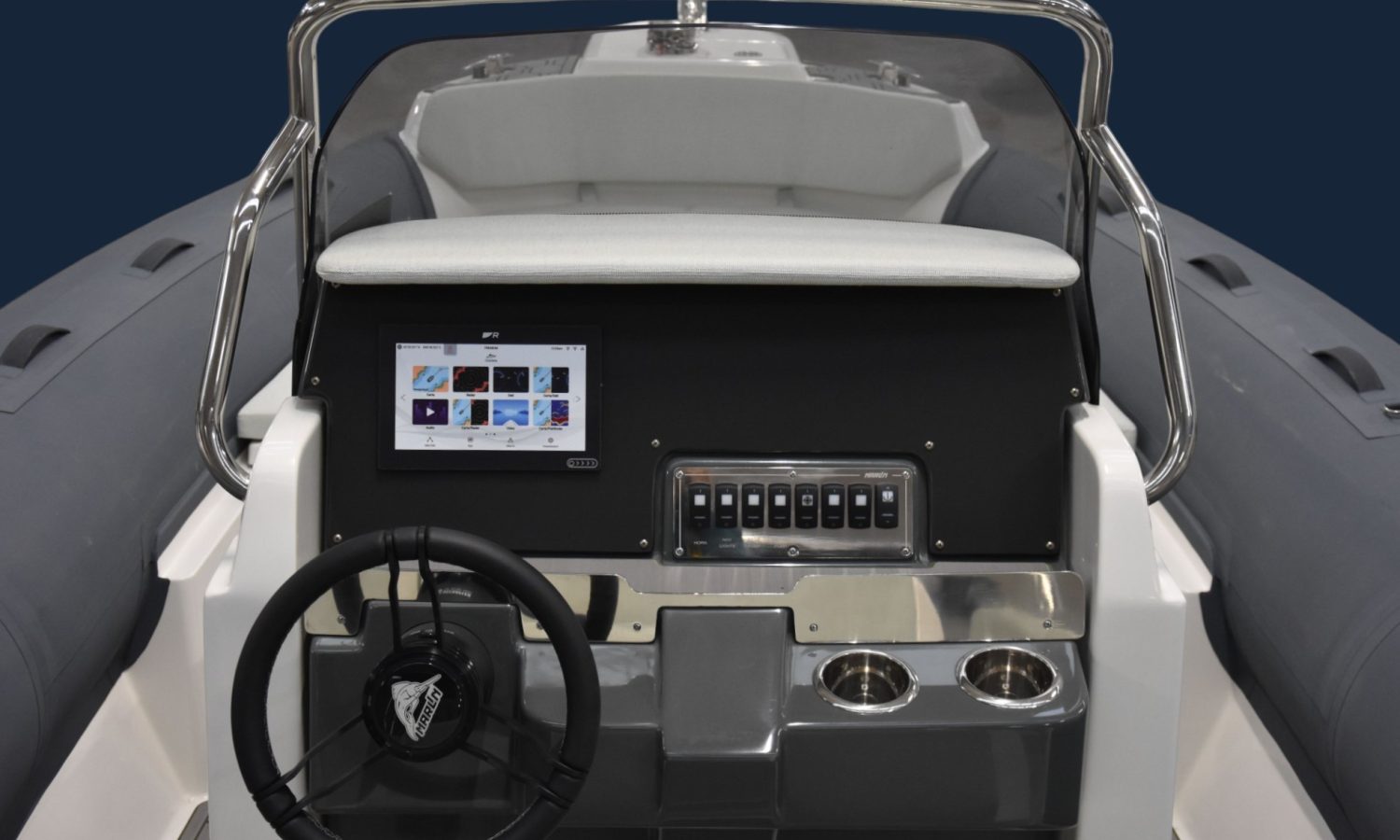

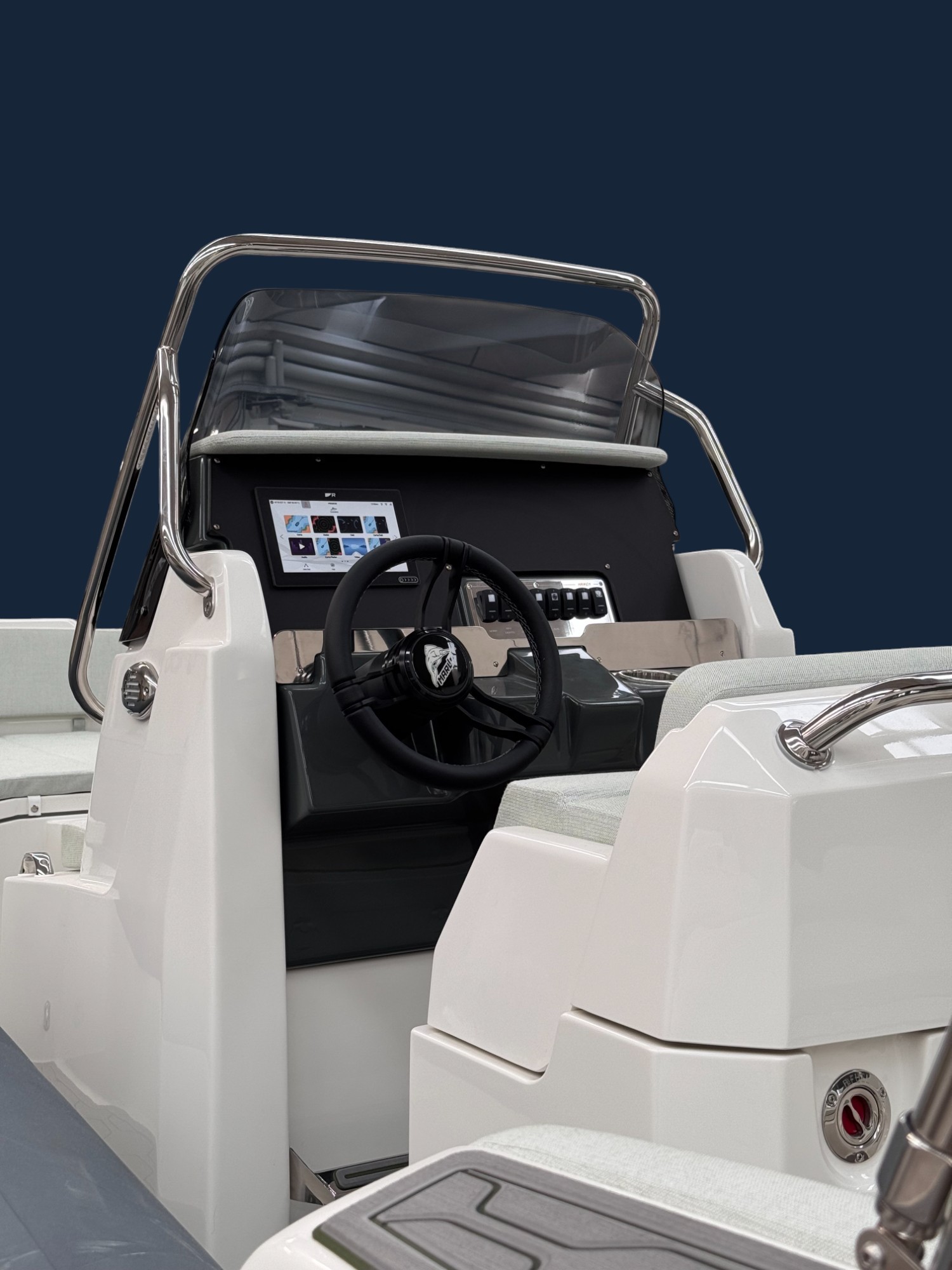

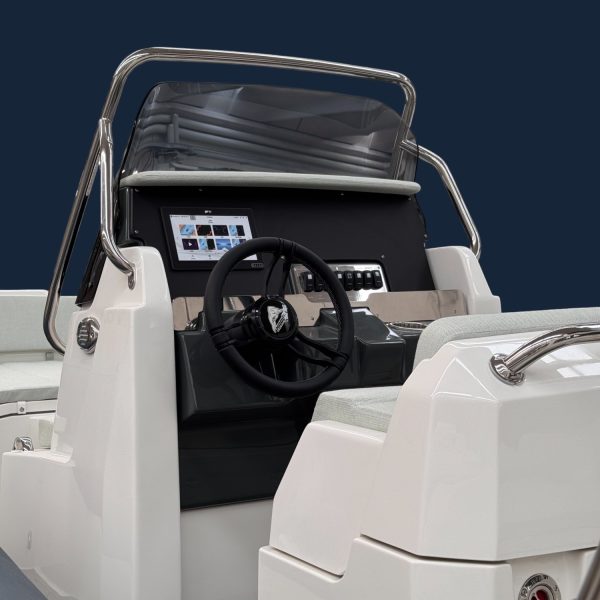

The walkways onboard are wide and well-protected, allowing smooth and safe movement at all times. Even the bow sunbed is shielded by the tubes and equipped with handy handrails for a secure grip. The compact, well-organized helm features clearly visible and easily accessible controls—even in challenging navigation conditions—for immediate and safe handling.

COMFORT

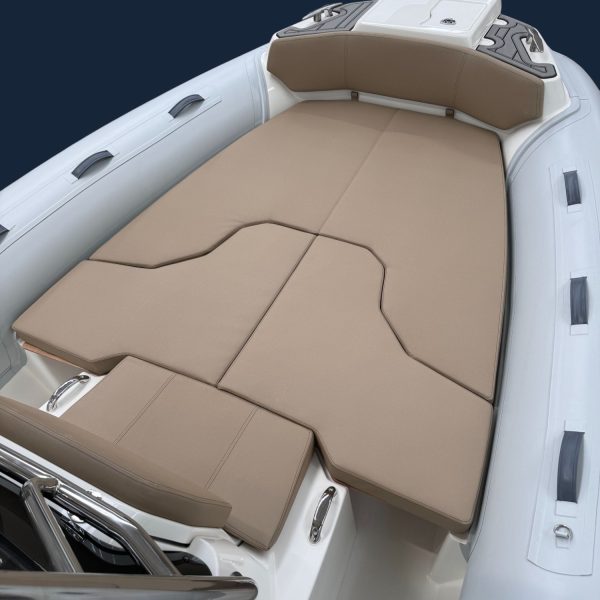

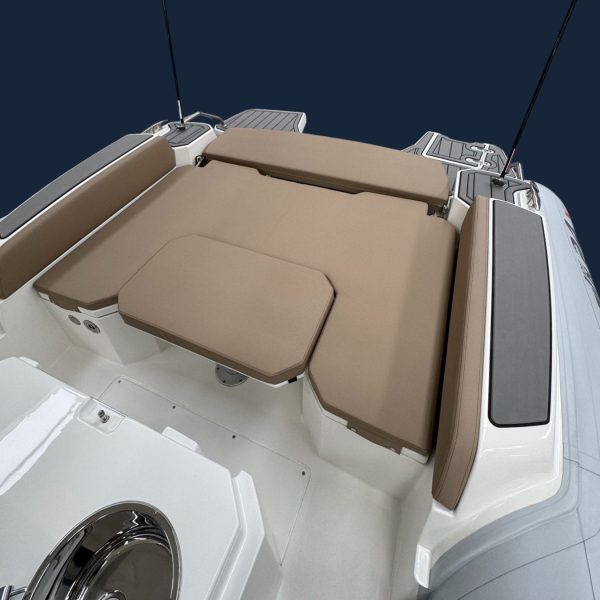

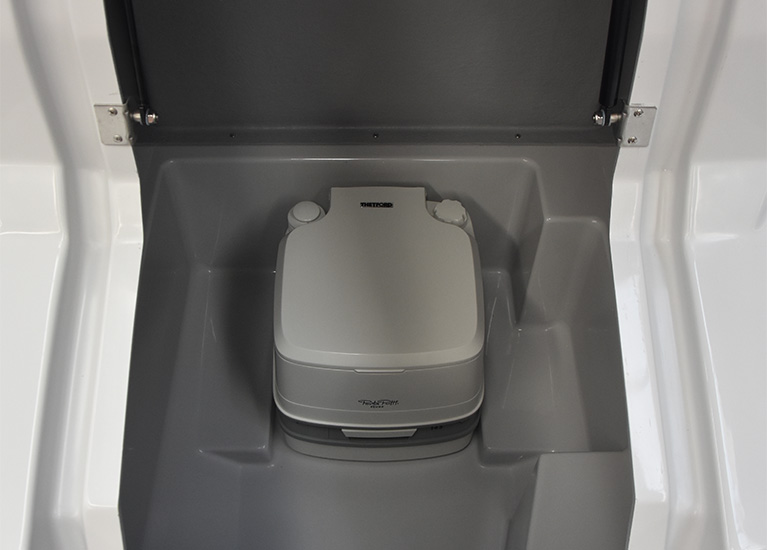

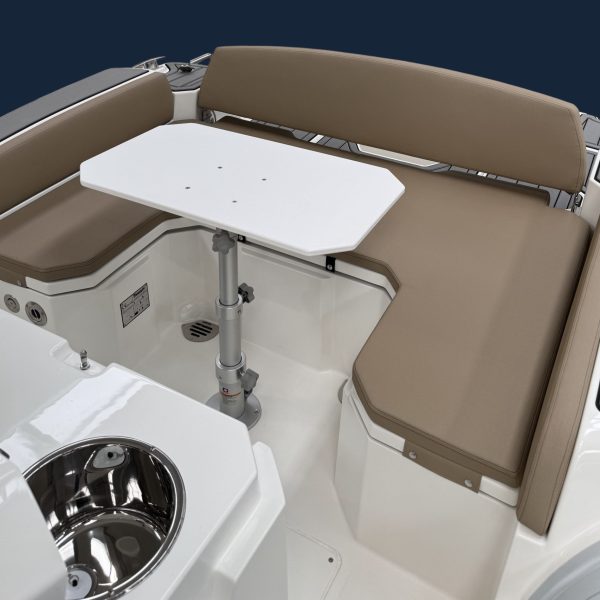

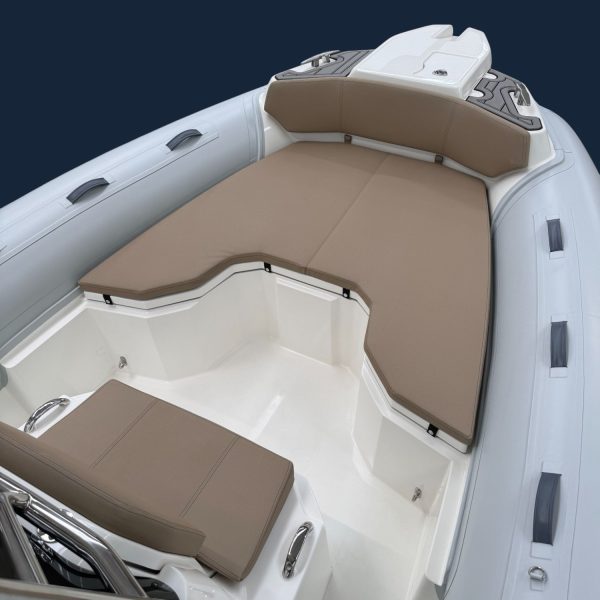

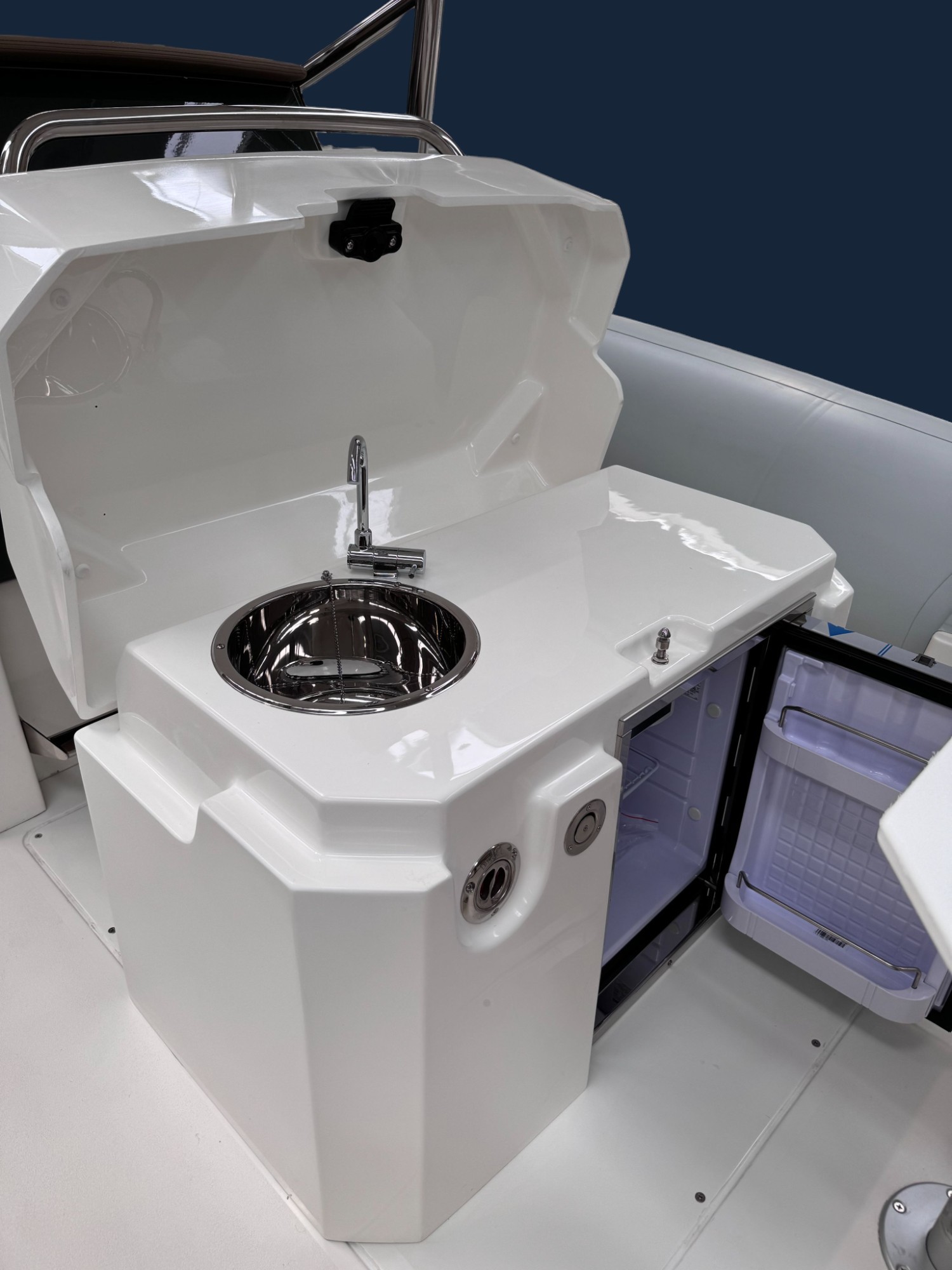

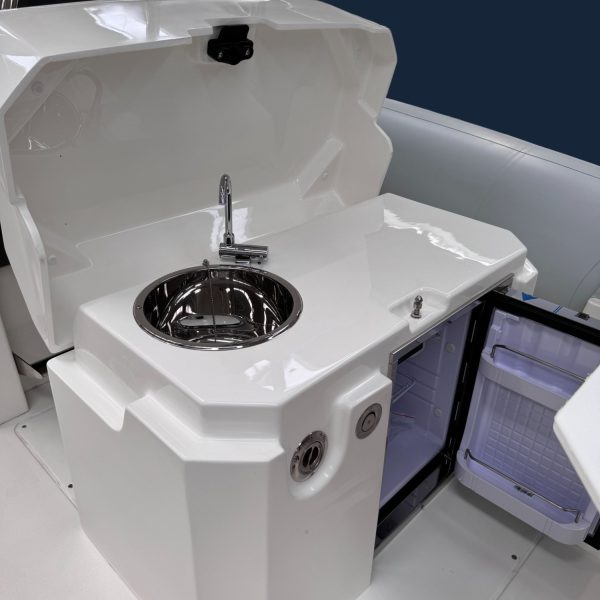

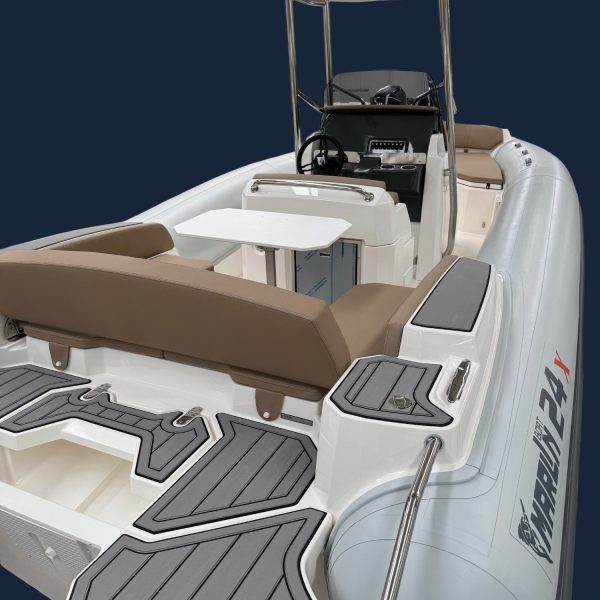

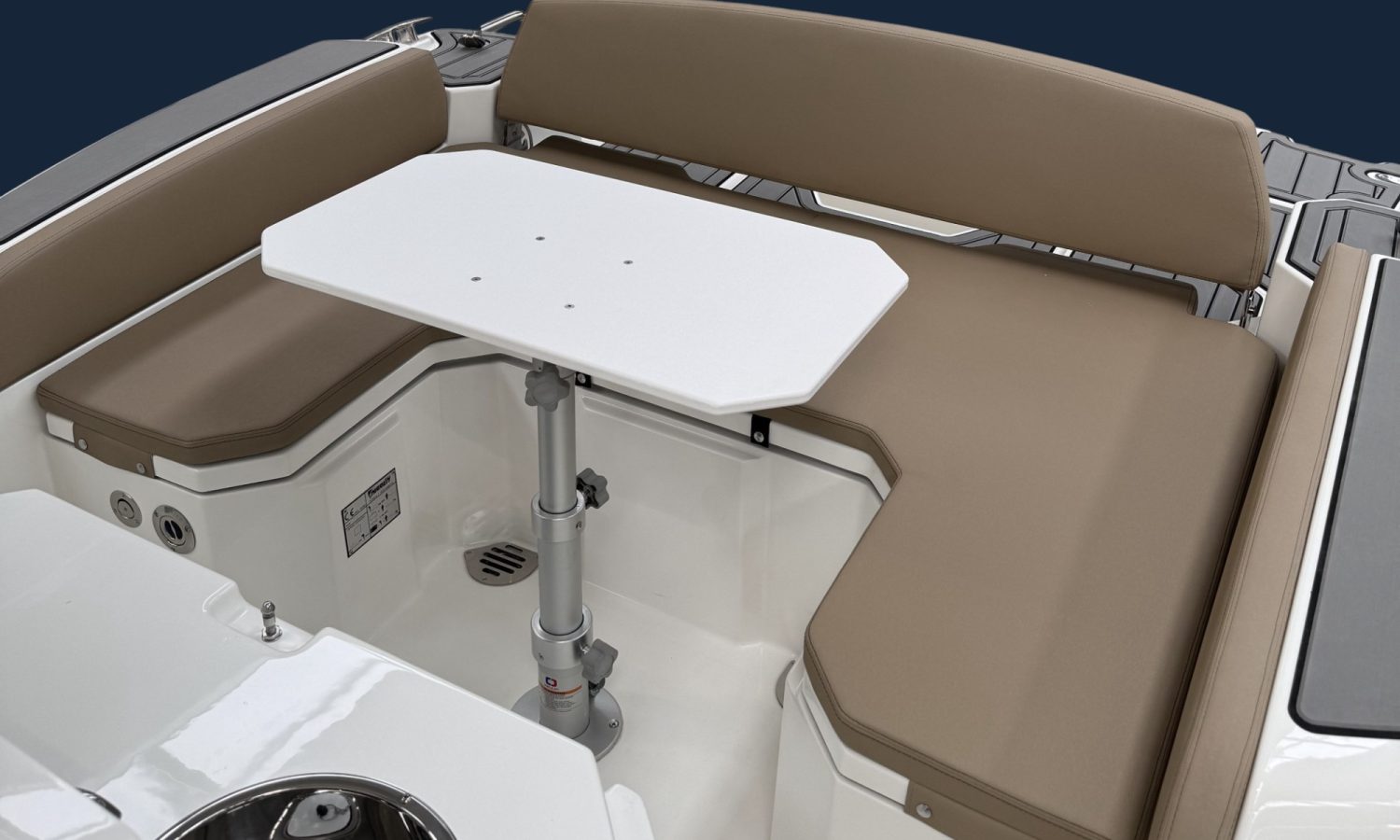

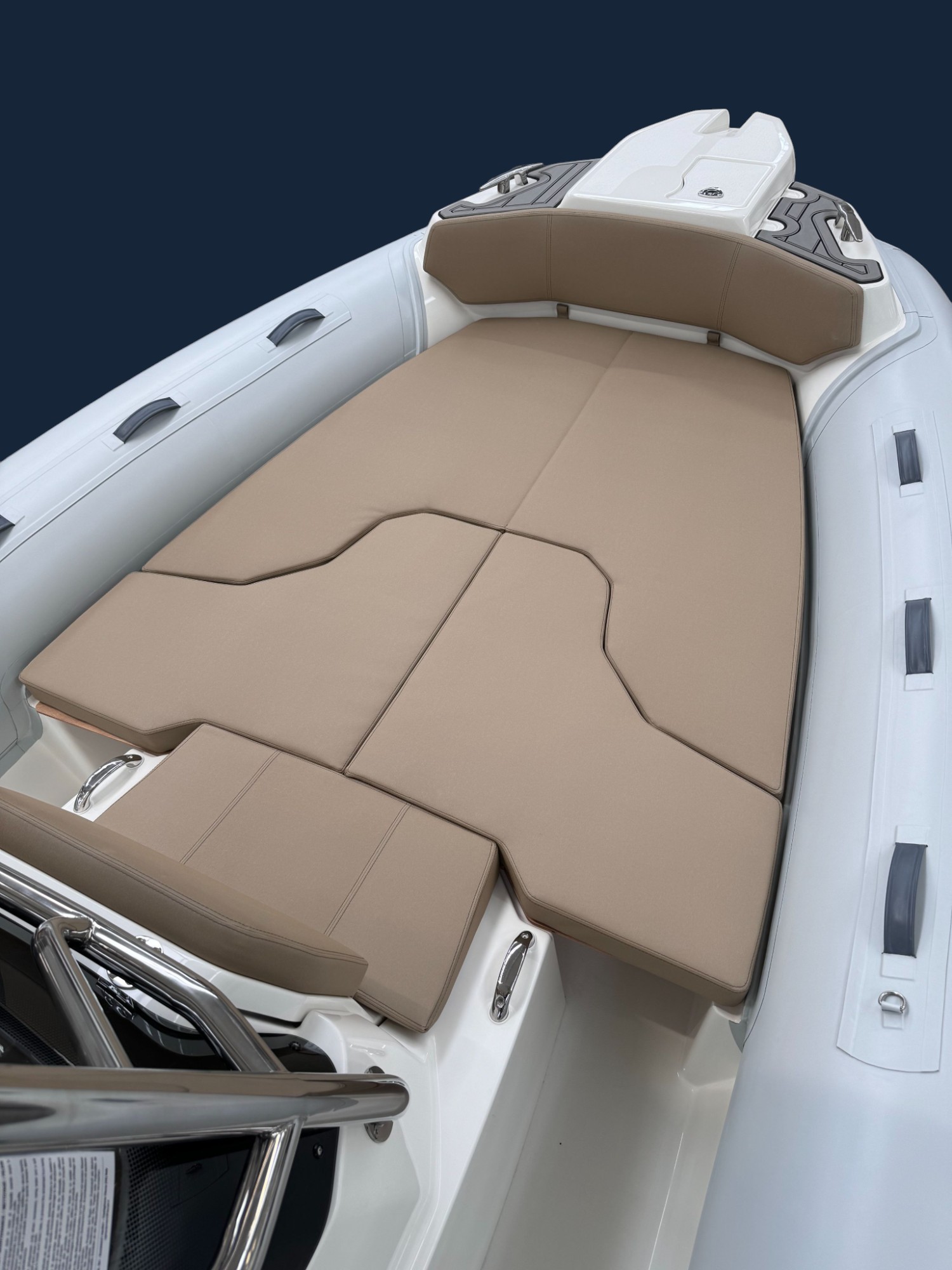

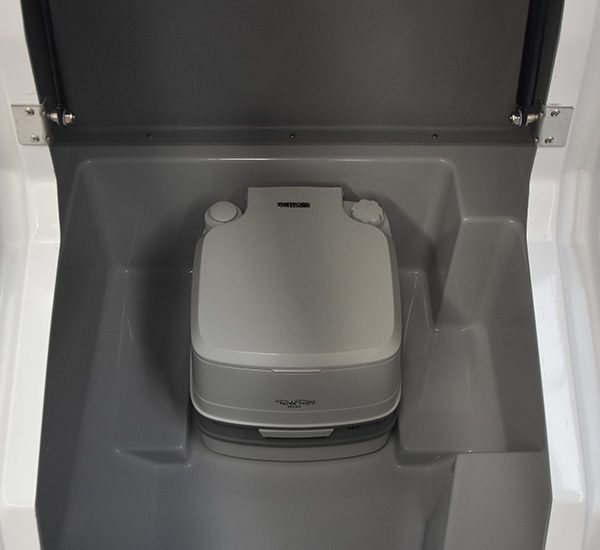

Every detail onboard is designed to offer maximum comfort. The helm console houses a toilet, while the cockpit can be equipped with a kitchen seat featuring a fridge, sink, and cutting board, transforming it into a social space. The stern area is enhanced by a table, perfect for meals and relaxation; at the bow, there’s an expandable sunbed with an extension.

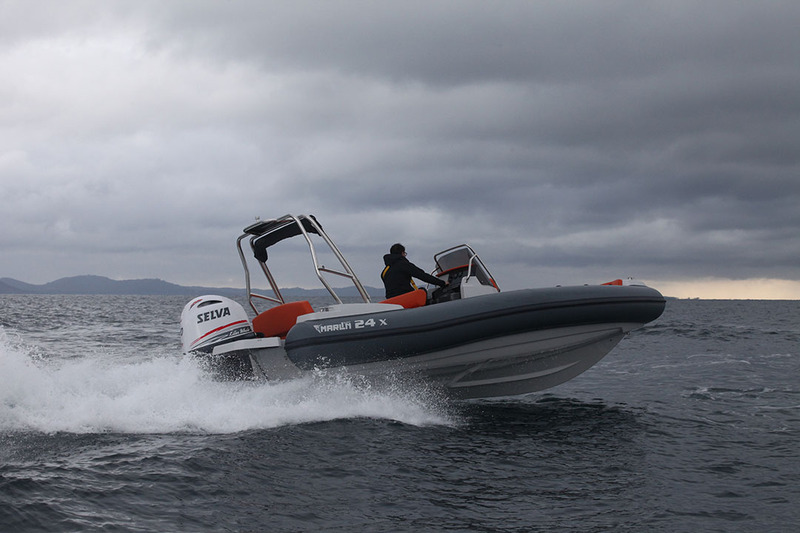

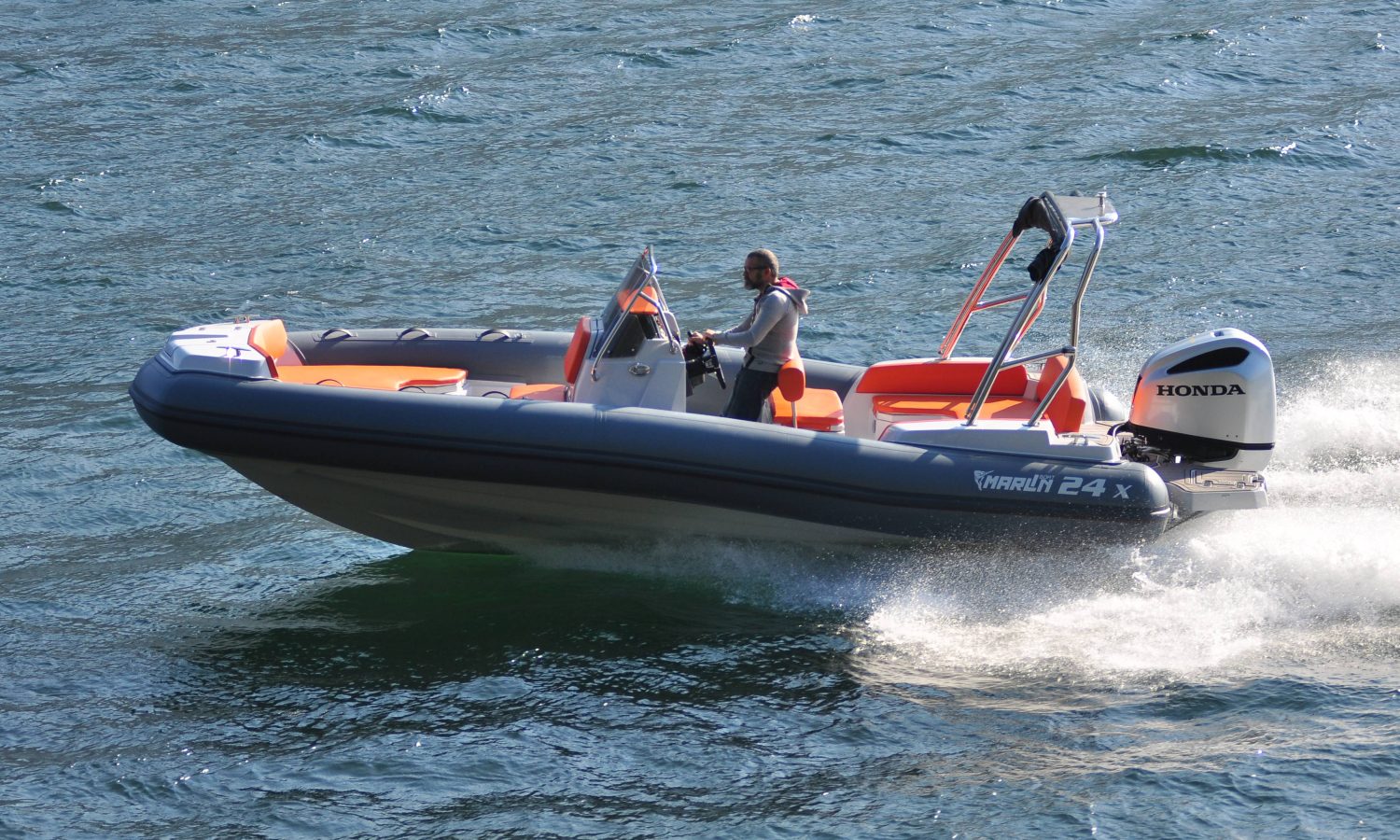

PERFORMANCE

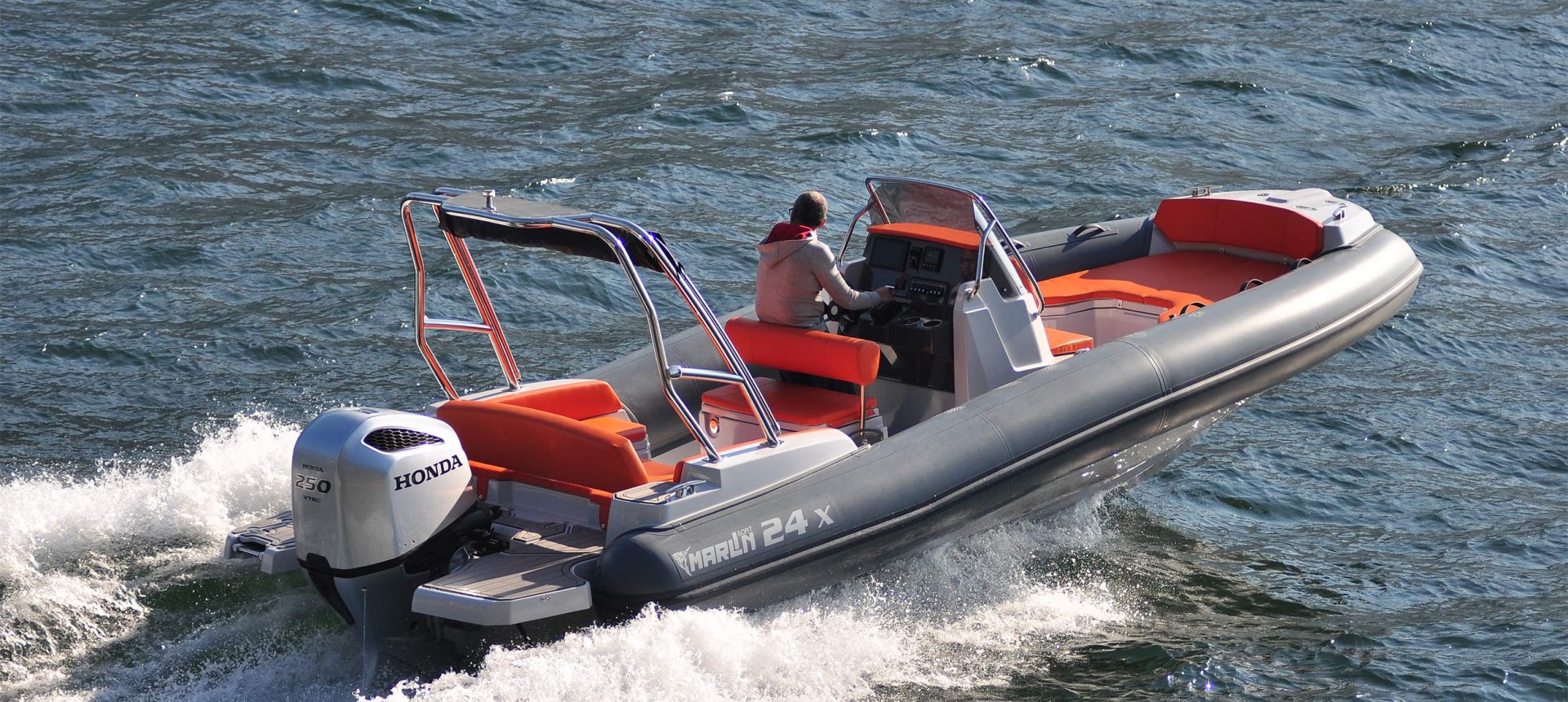

Marlin 24 X offers the perfect balance between sportiness and comfort. Its deep V hull with four chines and a redan ensures quick planing and stability even at high speeds. With a fuel consumption of just 27 liters per hour at 25 knots, it’s ideal for long trips with low fuel usage. The boat maintains a parallel attitude to the water, reducing the need for trim adjustments and enhancing safety and ease of handling.

TECHNICAL FEATURES
Design category
C
Overall lenght
cm 725
Certified lenght
cm 660
Internal lenght
cm 600
Overall width
cm 298
Internal width
cm 178
Tubes diameter
cm 58
Weight without engines
Kg 850
Capacity of people
nr. 14
Maximum power
CV 250
Compartments
nr. 5
Fuel tank
lt. 230
Water tank
lt. 40
Tubes material
Neoprene-Hypalon 1300 gr/m2
G.R.P.
Triple Hull Moulding Plans and patents Marlin Boat
Projects and patents
Marlin Boat
Stern height
1XL
STANDARD FEATURES

360° navigation Led light

Bittle inox per ormeggio

Steering console with windscreen, stainless steel handrail, instrument panel, steering, two seats in the front

Haulage stainless steel eyebolts

Mooring and trasport stainless steel eyebolts

Stainless steel mooring bollards

Reflex foam stern coating for platforms, stern, stringers and nose

Wiring with electric control panel, horn, 360° light, bilge pump

Tubes reparation kit

Haulage stainless steel eyebolts

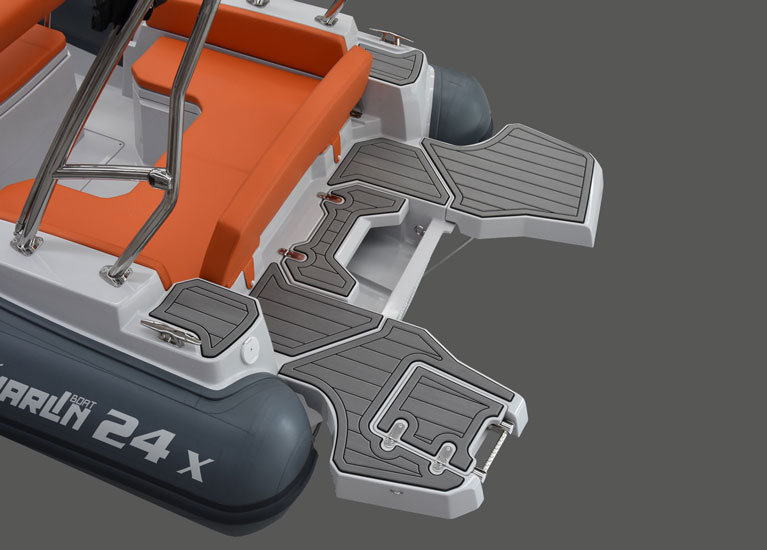

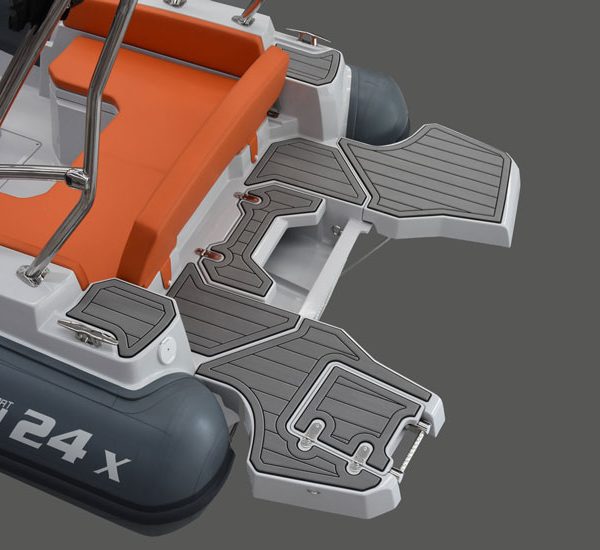

Stern bathing platforms with stainless steel ladder

Reflex foam coating for platforms, stern, stringers and nose

Stainless steel fuel tank

Water tank with pump and shower

Hydraulic steering

EXTRA FEATURES
  • Bathroom dressing
  • Water skiing towing pole
  • Stern underwater blue led lights
  • Cockpit fridge 18 l
  • Stainless steel and fybreglass hard top with led navigation lights
  • Cockpit and platform complete lighting blue led lights
  • Lifting strops kit with shackles
  • Extension for bow sunbathing unit
  • Re-flex floor covering
  • Stainless steel rollbar with led lights and extensible bimini
  • Cooking seat with stainless steel drawer fridge and sink
  • Stern table sunbathing extension with cushion
  • Mooring cover
  • Total mooring cover
  • Stern bimini for hard top with carbon elastic poles
  • Stern stainless steel 4 arch bimini
  • Tubes color variant
  • Cushions color variant

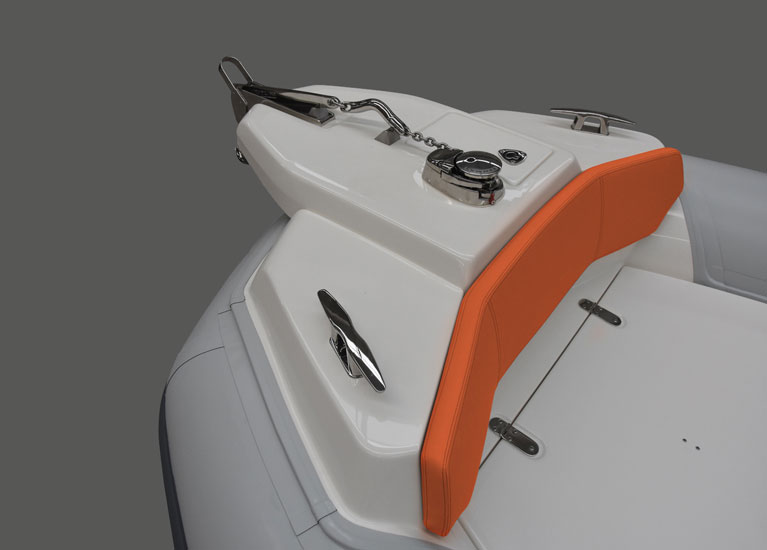

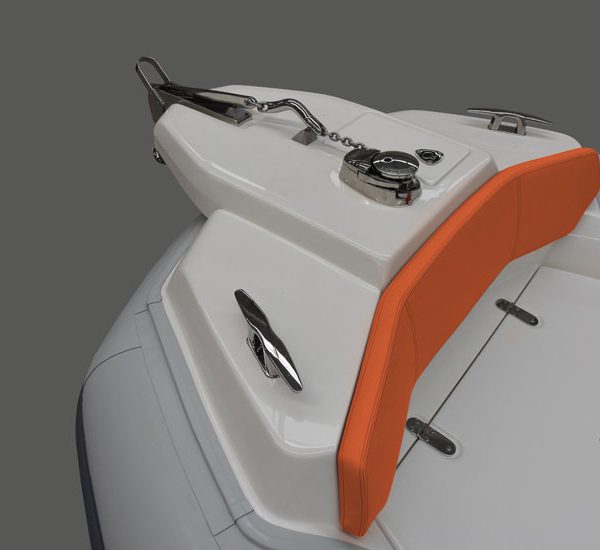

  • Anchor windlass with GRP bow mould, rope, chain and stainless steel anchor
  • Electric equipment
  • Transport cover
